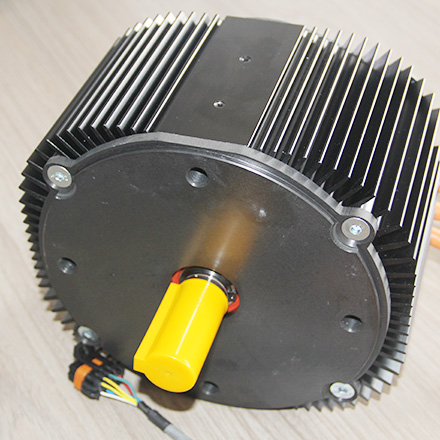

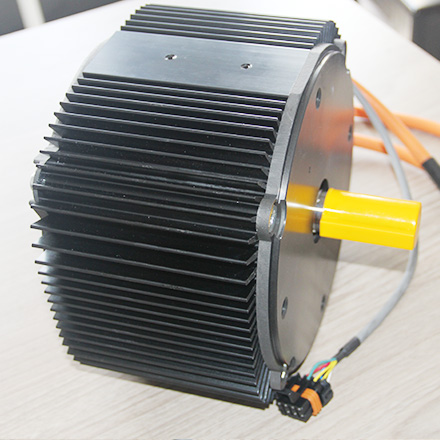

ME1507 IPM Motor -Mid driving motor for E Motorcycle

PMSM Motor

72V  rated  7000W  , Rated torque22NM   3000RPM

Peak Power  14KW  44NM

1 minute 25KW  (100V  250A)

Lamination  0.35mm  12 slots  10 magnets

Magnets : N40SH

Copper wire : 200 Grade

 withSINE COS Encode

STAR  connection

Resistator : 32mOHM ;

Efficiency :92%

Length :   136mm

Shaft : D22X25  with 6X6 Keyslot

Barrel color : Black, gold
