V3 Hub motor 8KW is made for Electric motorcycle . 96V 1240rpm 110km/h . 50H 55 3T , controller KLS96501-80801 200A continous current peak 500A;
Max torque : 250NM eff. 88%.IP54 .

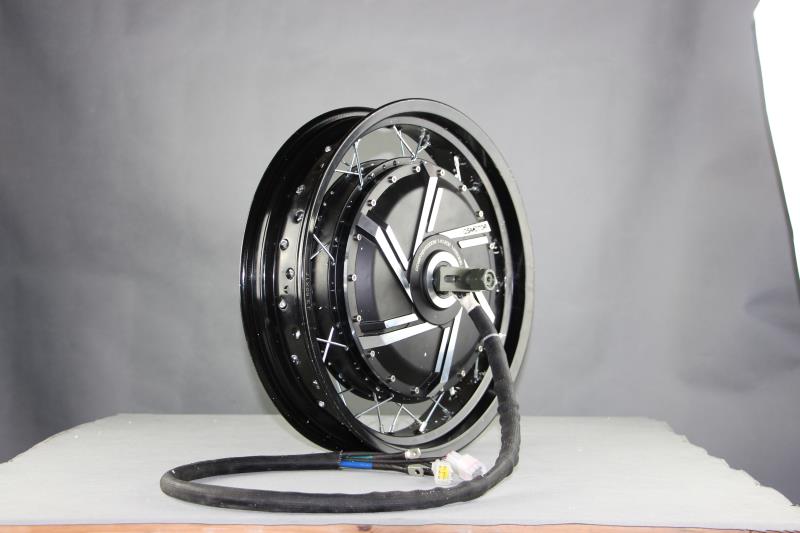

17inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V3 Type
17inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.
Motor Specification:
Motor Type: BLDC Hub Motor with Permanent Magnets
Motor design: Double axle out with 17inch Aluminium rim
Rim size:3.5×17
Matching Tire: 120/70-17
Magnet Height: 50MM
of Pole Pairs: 16 pairs
Rated Power: 8000W
Max Power:11250W(Peak 16000W)
Rated Voltage: 72V( 72-144V Can be optional)
Speed: 115km/h (30-120km/h can be customized)
Max No-load RPM:1160RPM
Max Torque: 200N.M
Max Efficiency: 90%
Continious current:130A
Max current:190A ,Peak 260A
Brake type: Disc brake
Rear Fork width for installation: 200mm
Winding Core material: Aluminium
Cross Section of Phase wire: 16 mm2
Hall sensor phasing angle: 120 degree
Temperature Sensor: Optional
Working Temperature: 70 degree, Peak 120 degree
Waterproof Grade: IP54
W./ G..W. : 25kgs / 26kgs
Package Size: 58*58*40CM
