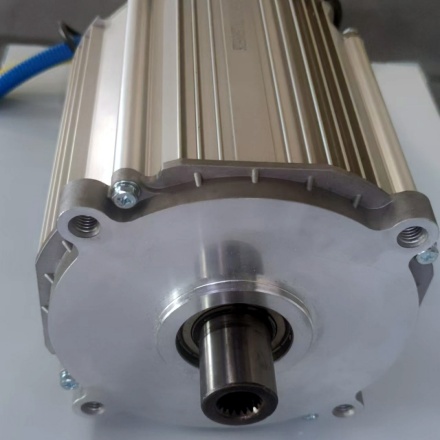

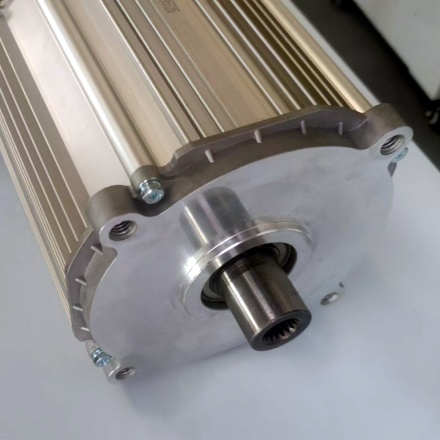

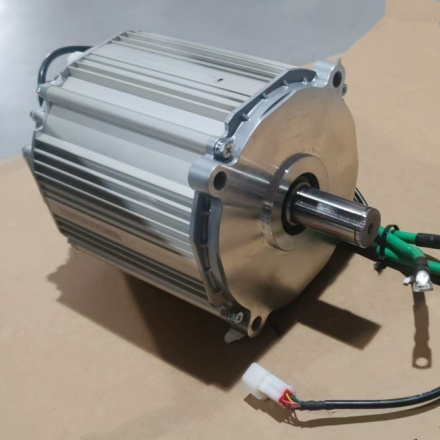

SL180-96 IPM motor is designed for electric motorcycle, elelctric boat, electric vehicle, mini car , and elelctric cargo trike.
SL180-96 IPM 48V 4800RPM KV 100 ,unload 9.5A is for industrial mower 6KW , Shaft D35mm
SL180-96 IPM 96V 8000RPM KV77 for electric boat and electric motorcycle 10KW Shaft D30mm sprocket thickness 54mm Length 68mm
Net weight 22.5KGS

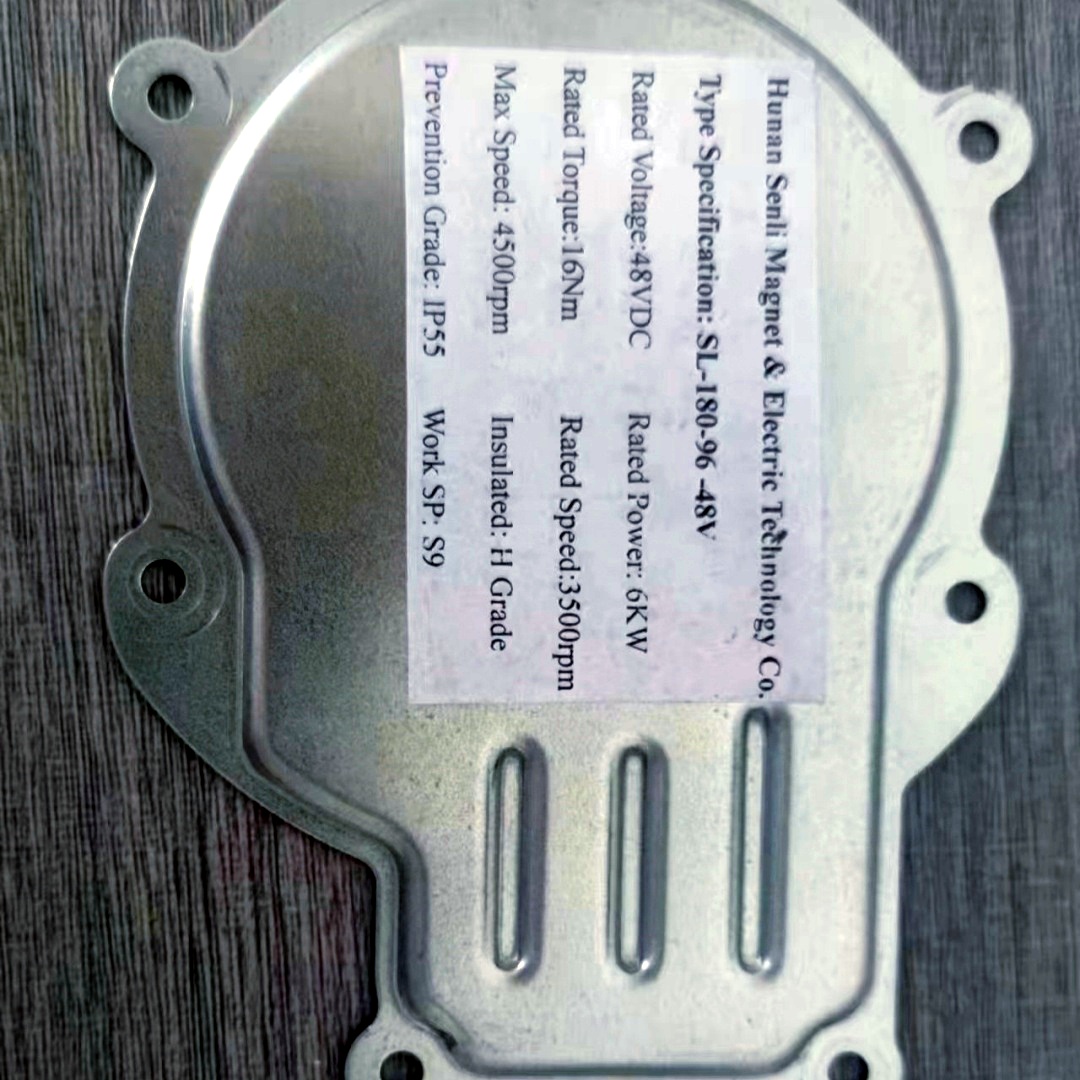

SL 180-96 48V KV100 Rated 6KW
1. Stator OD180 mm 12 slots
2.Rotor height 96mm 8 poles 16 magnets V-type N 40SH Magnets
3. Star coil star connection
4. Temp sensors :NTC LNT234-4537-03 230KOHM -50Degree--200Degree C
6. Hall sensors outside
7.Shaft D35mm
8. Barrel length 169mm
9. Weight 22.5KGS
SL 180-96 96V KV77 Rated 8KW
1. Stator OD180 mm 12 slots
2.Rotor height 96mm 8 poles 16 magnets V-type N 40SH Magnets
3. Star coil star connection
4. Temp sensors :NTC LNT234-4537-03 230KOHM -50Degree--200Degree C
6. Hall sensors outside
7.Shaft D30mm X 69mm
8. Barrel length 169mm
9. Weight 22.5KGS
