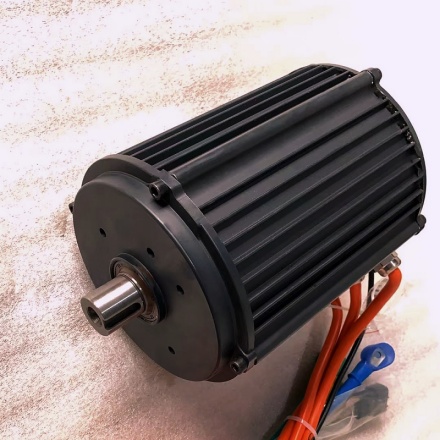

SL145 72V 4KW PMSM motor for electric motorcycle

1> Motor detais:

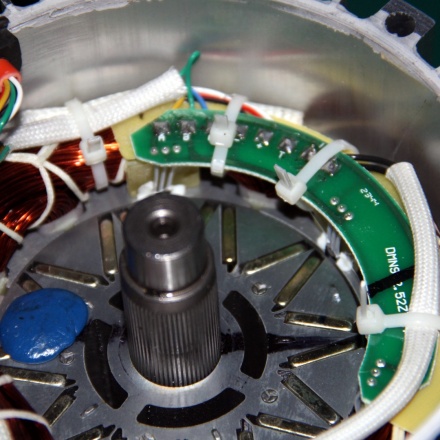

Motor type:IPM Motor With Hall Sensor

Diameter of stator: 145mm

Rated Power: 3500W

Max. power:7000W

Rated Voltage: 72V as default

Rated Speed:3000rpm

Max Torque: approx 65N.m

Max Efficiency: 90%

Rated Current: 54A

Peak Battery Current: 120A (72V)
