SL140 series IPM motor is on developing, Senlimotors develops OD of stator 140mm IPM motor , length 60mm and 80mm(magnets)
V-type 10 poles IPM motor , 12 slots , with temp sensors KTY83-120 and magnetic encode , Shaft D25mm with 8 keyway. for heavy electricmotorcycle。
Rated 60V 3000RPM 72V , 3500RPM 5KW Peak 10KW , can be controlled by weak Flux . Power will be stronger Surron motor

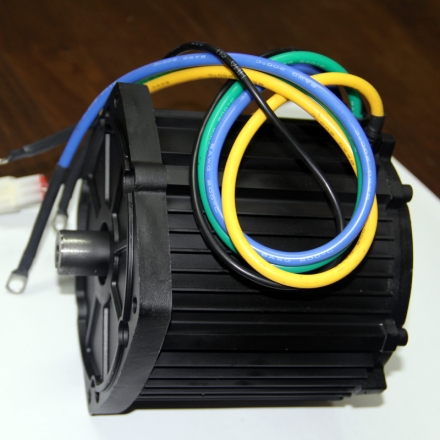

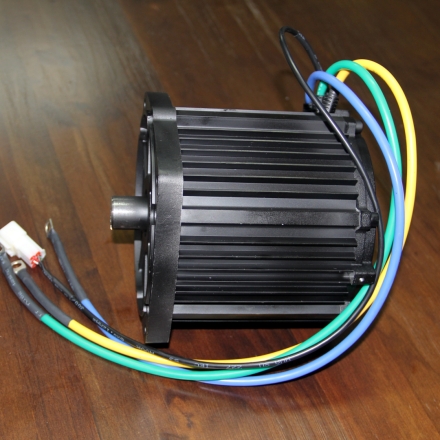

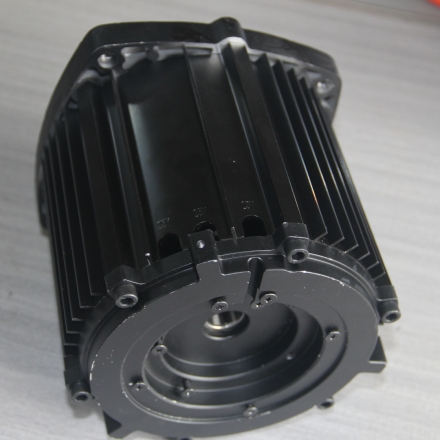

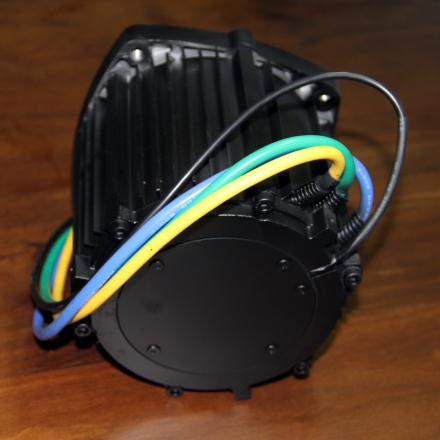

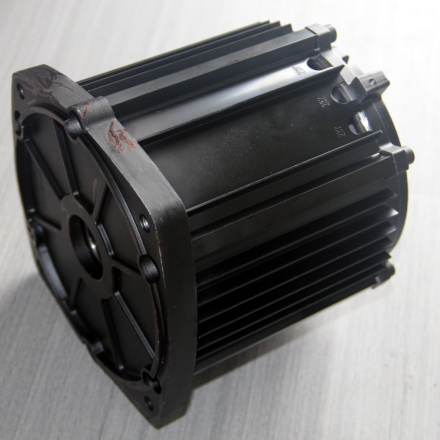

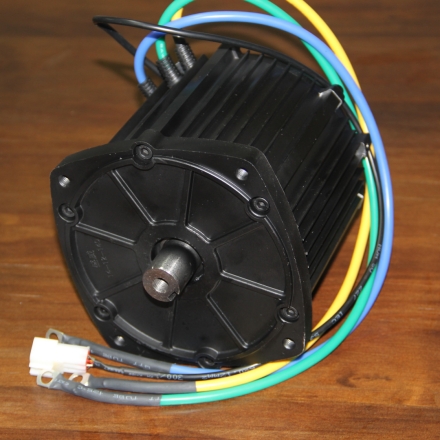

SL140 series IPM motor is online, Senlimotors develops OD of stator 140mm IPM motor , length 60mm and 80mm(magnets)
V-type 10 poles IPM motor , 12 slots , with temp sensors KTY83-120 and HALL SENSORS , Shaft D25mm with 8 keyway. for heavy electricmotorcycle。
60V 3000RPM 72V , 3500RPM RATED 5KW Peak 10KW , can be controlled by weak Flux (FOC) . Power will be stronger Surron motor
you can select magnetic encode OR Hall sensors .
Weight 8.3KG
Length 160mm and fixing hole is D8 X 4 170mm round.
