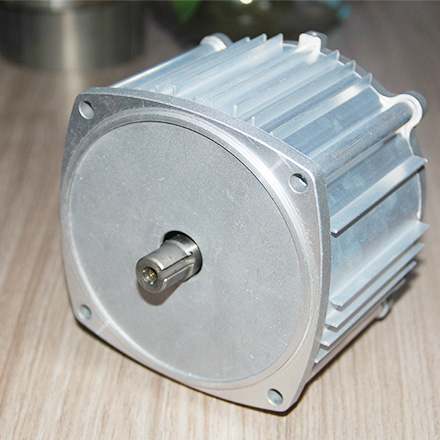

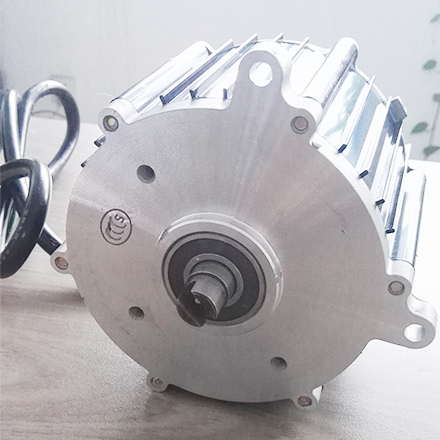

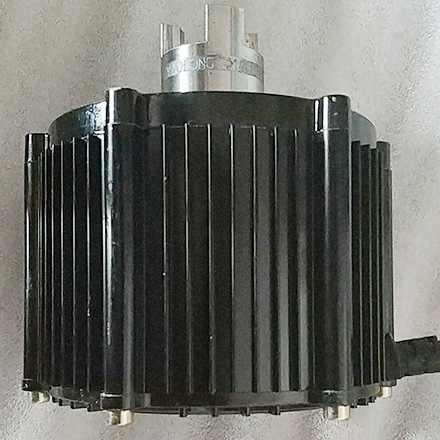

SL120-18-50 BLDC Motor -Mid driving motor for E Mountain Bike

Senli Co. develop special Mid driving motor for EMTB,

60V rated 2000W, Rated torque 6NM 3500RPM

Peak Power 4KW 12NM

1 minute 7KW (60V 120A)

Lamination 0.35mm 18 slots 16 magnets powder spraying

Magnets : N40SH

Copper wire : 200 Grade 4T

Delta connection

Resistator : 12 mOHM

Efficiency : 90%

Length : 100mm 106mm

Shaft : D14X12 with 4X4 Keyslot D15X16 with 4X4 keyslot

Barrel color : Aluminium, Black, gold
