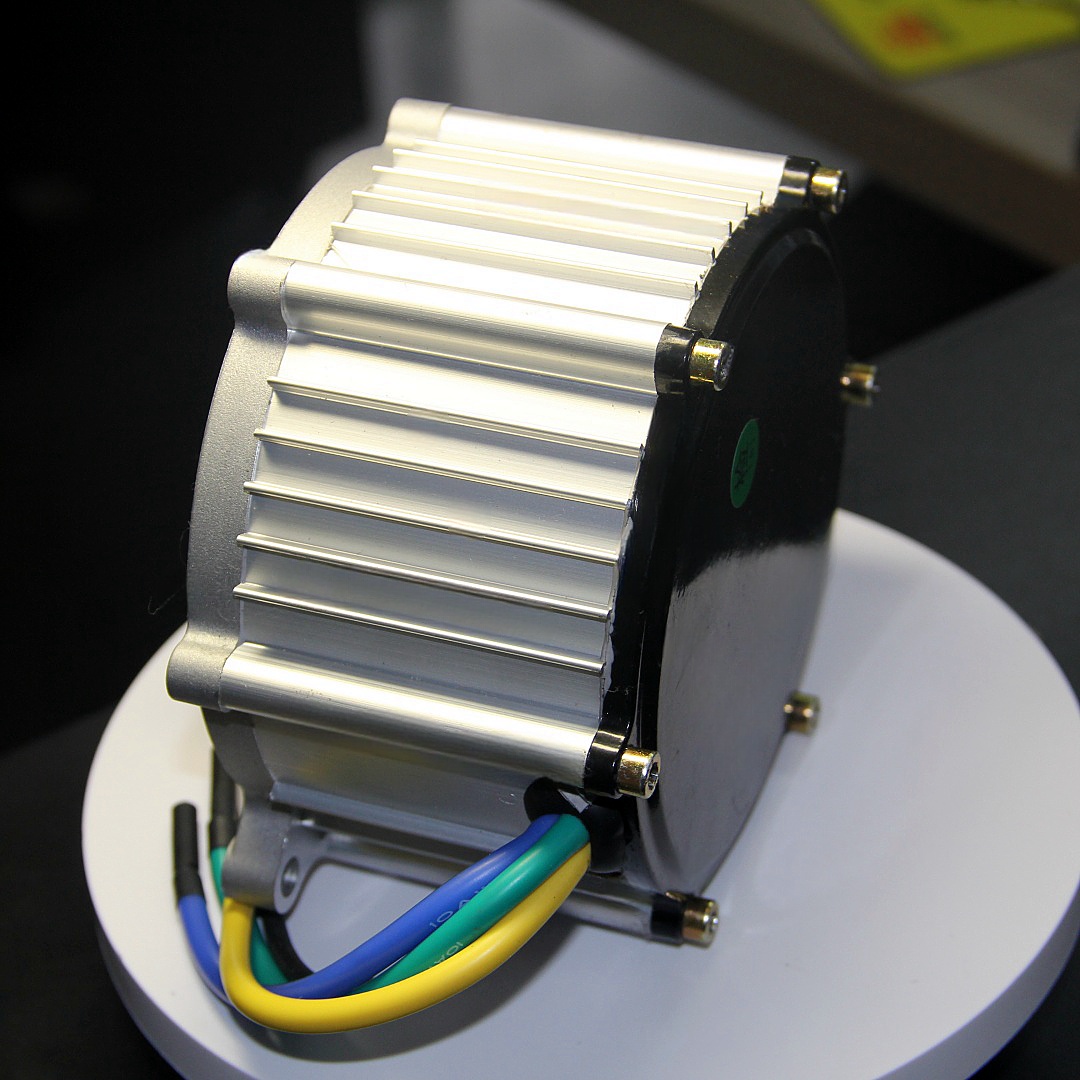

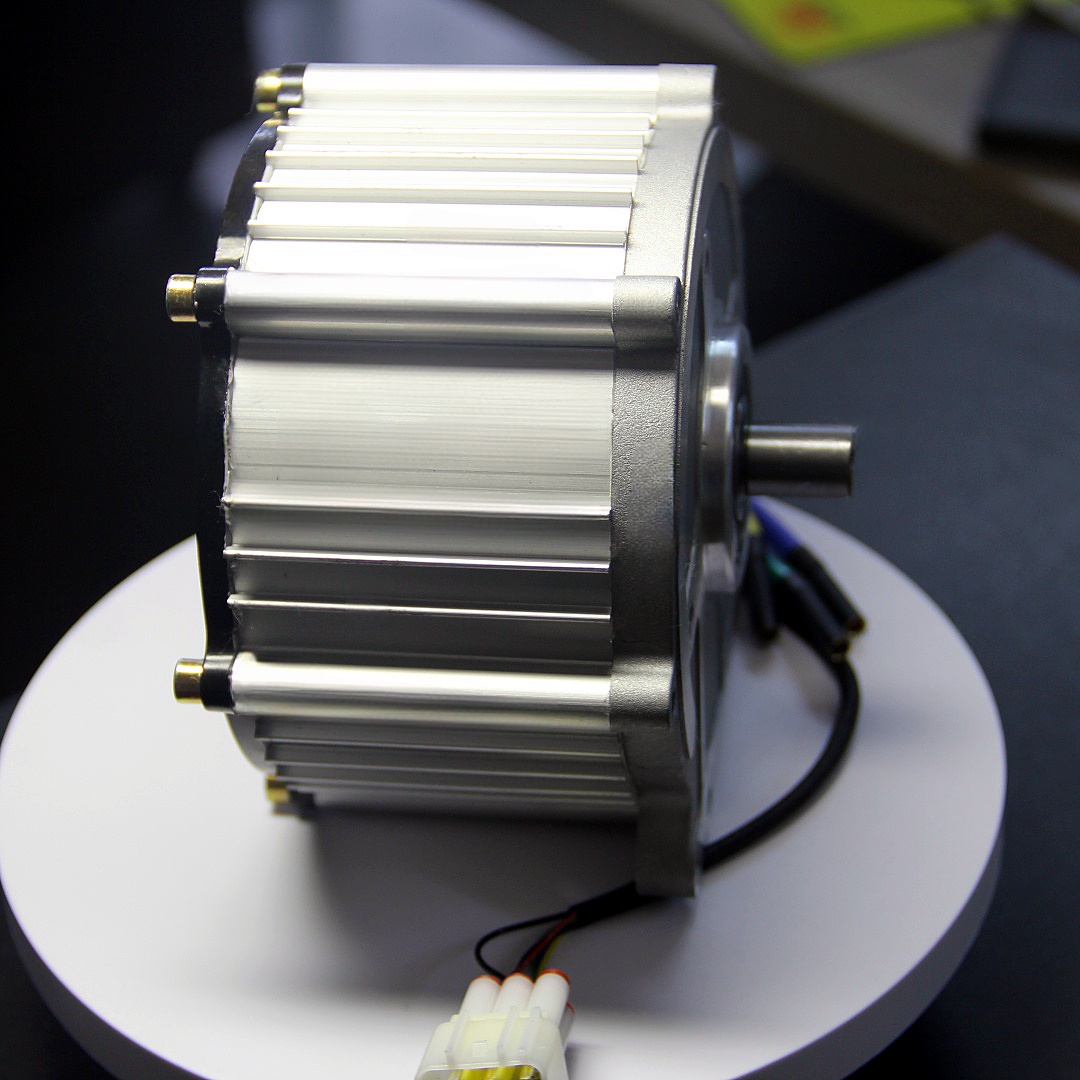

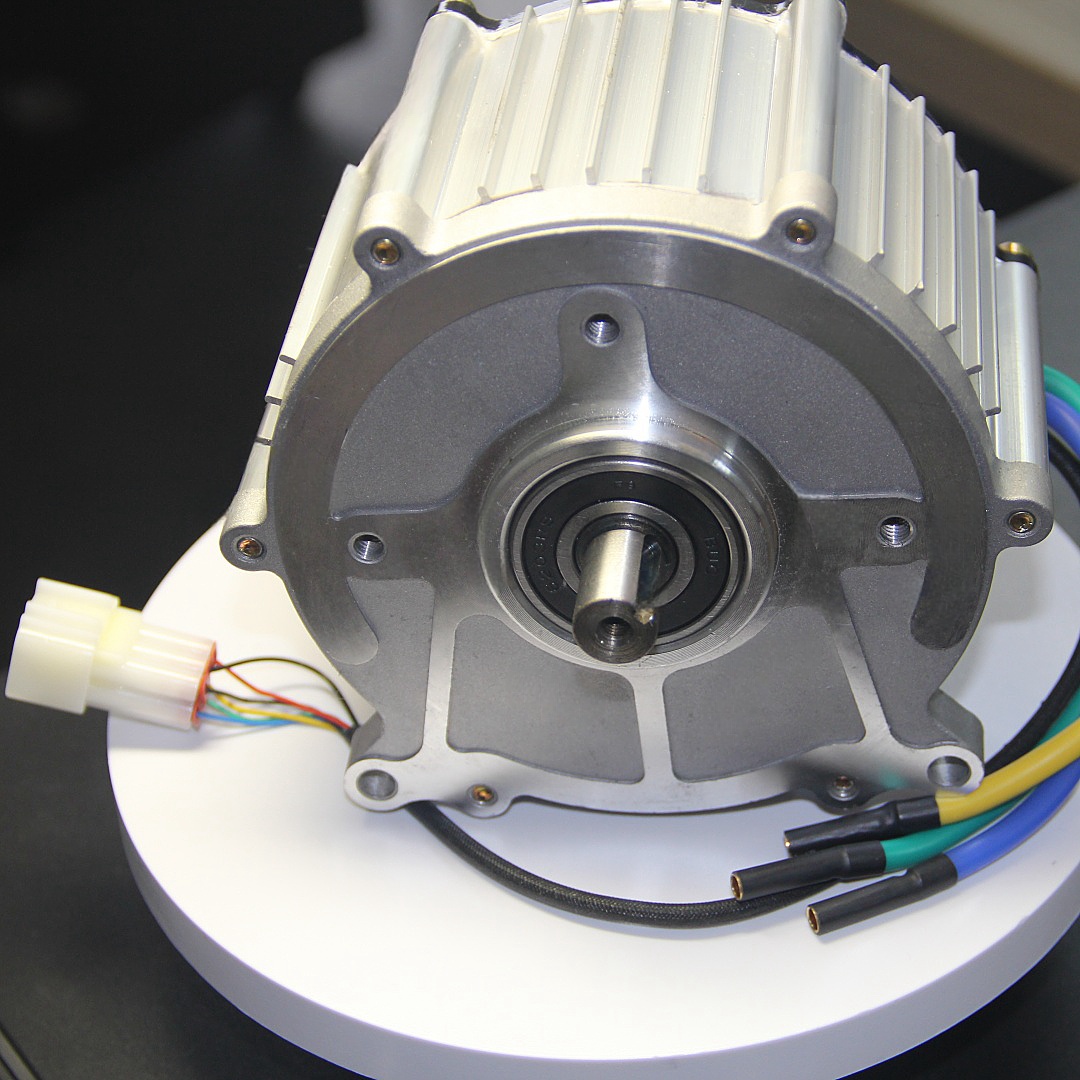

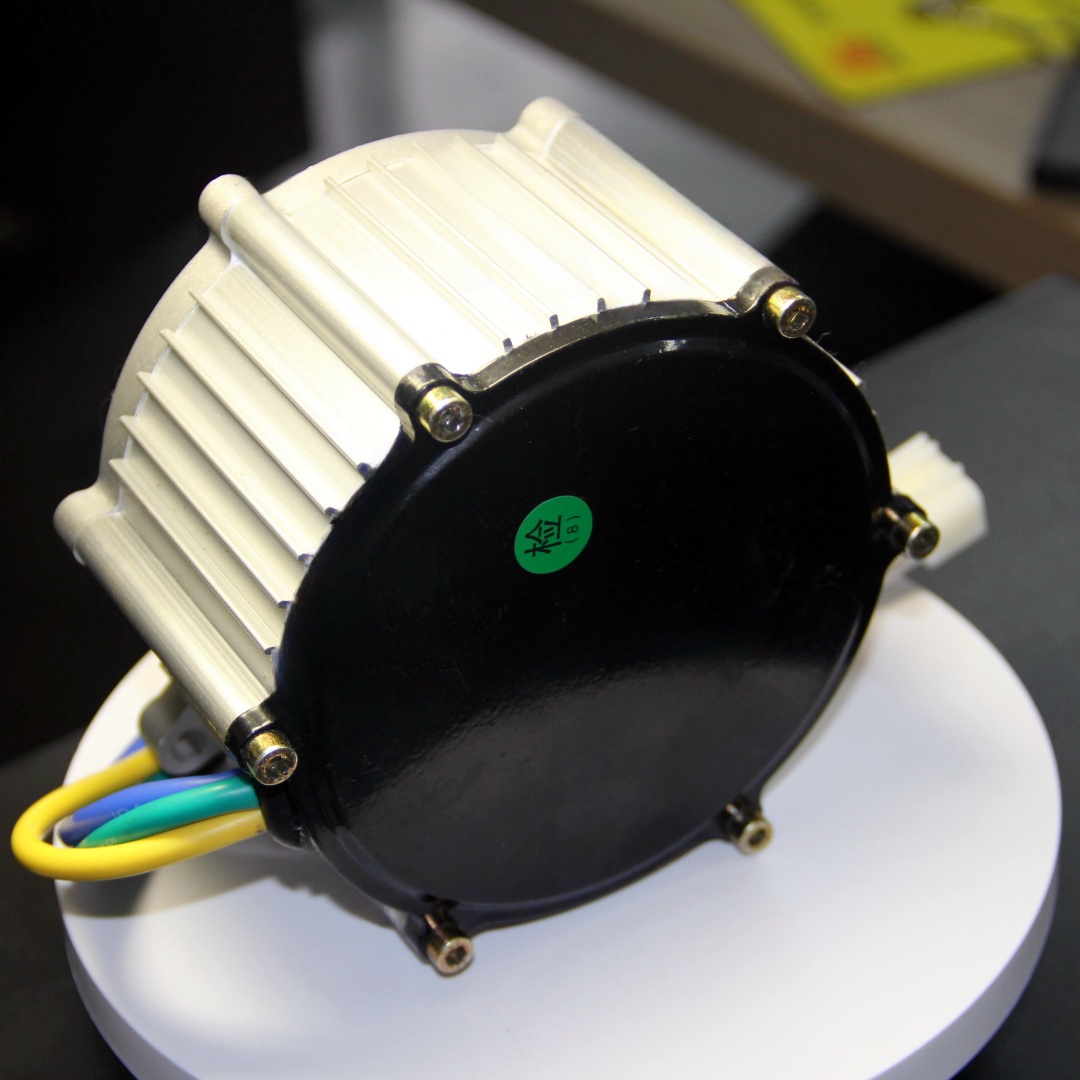

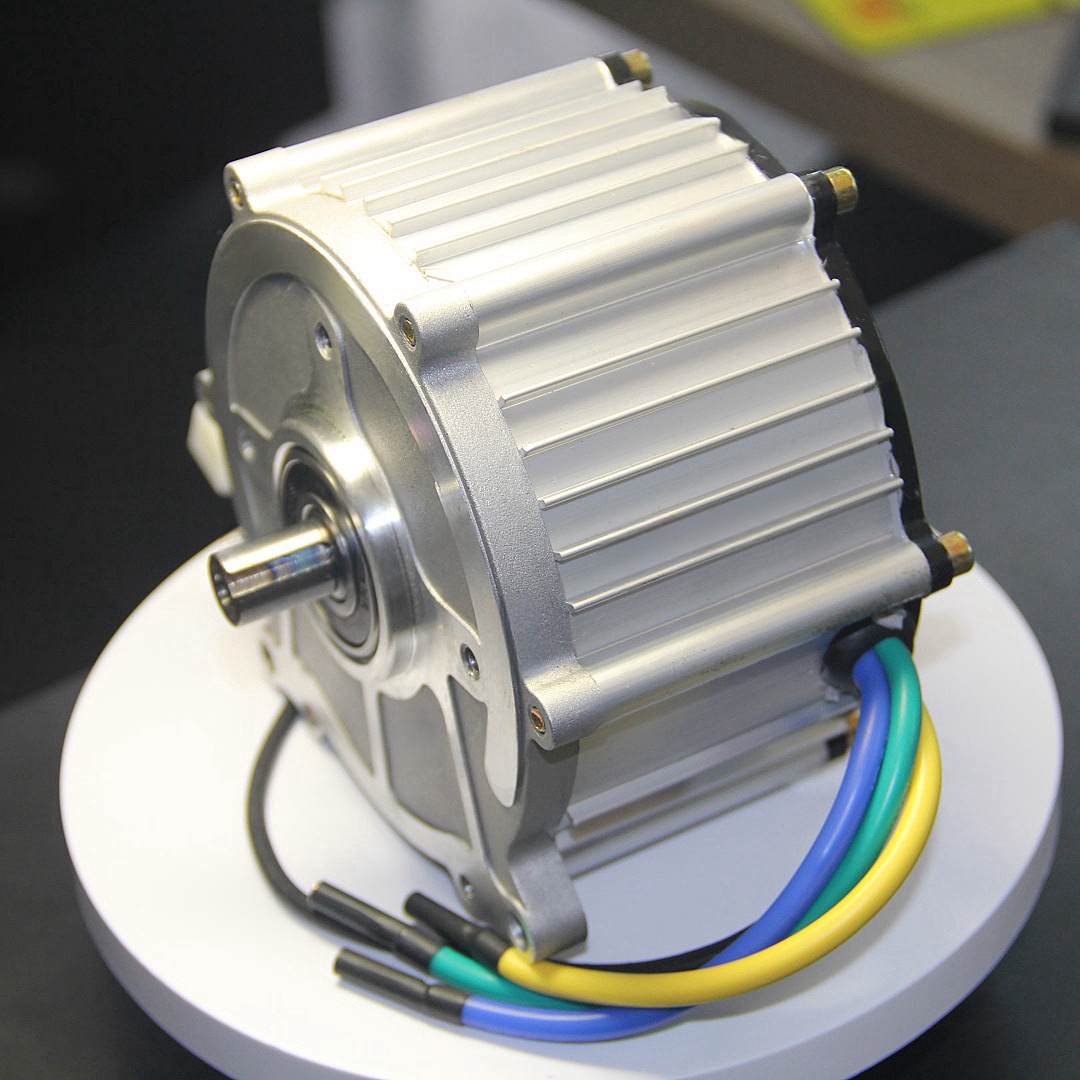

SL 120-30IPM motor
This PMSM motor is rotor with IPM magnet , 30mm height
Only 2.8KGS , very light and can be used in light Ebike , E gokart, ATV，RAZOR EBIKE
60V 1000W 3300RPM
SL 120-30IPM Brushles motor
SL120-30IPM DC motor is light PMSM motor ,
1. Stator lamination OD120mm 12 slots 0.35 high properties lamination
2. Rotor IPM magnet ( N35SH Neodymium magnet) 10 poles 20 pcs V-type magnets
3. Shaft D14mm with 4 keyway 20mm long
4. Hall sensors Plus KTY83-120 temp sensor , 6pin sealing plug
5. cable10 AWG 200Degree soft silicon cable , quick plug
6. weight : 2.8KGS
7. Sealing cover
Properties:
working Voltage : 60V
KV : 55
Rated Power 600W
Peak Power 1200W
Efficiency: 90%
Color : Black , Silver
Package : carton and box
SL 120-30IPM Brushles motor
SL120-30IPM DC motor is light PMSM motor ,
1. Stator lamination OD120mm 12 slots 0.35 high properties lamination
2. Rotor IPM magnet ( N35SH Neodymium magnet) 10 poles 20 pcs V-type magnets
3. Shaft D14mm with 4 keyway 20mm long
4. Hall sensors Plus KTY83-120 temp sensor , 6pin sealing plug
5. cable10 AWG 200Degree soft silicon cable , quick plug
6. weight : 2.8KGS
7. Sealing cover
Properties:
working Voltage : 60V
KV : 55
Rated Power 1000W
Peak Power 2000W
Efficiency: 90%
Color : Black , Silver
Package : carton and box
