SL7050 outrunner motor is suitable for lwan mower and all kinds of tooling;
Od is 70mm height 50mm , it is without Hall sensors .
Easy running and light weight , High power density . KV 200

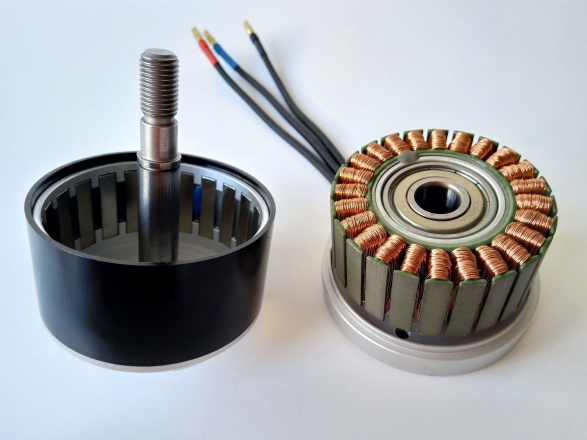

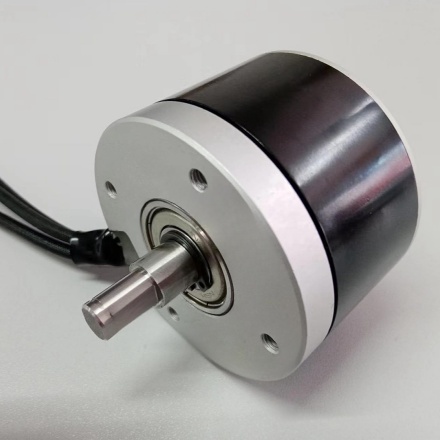

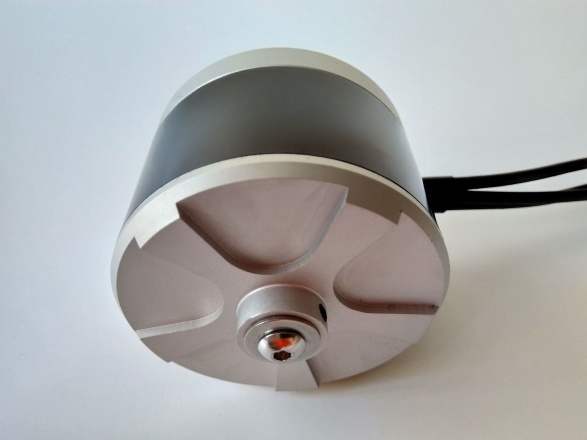

SL7050 Outrunner motor
1. lamination 0.2mm OD70mm Height50mm
2. 22 poles magnets N42SH
3. Phase 12AWG
4. Working volt : 36V-40V
5. Unload current 2.4A
6. Unload Speed : 7160 RPM
7. Rated Power : 980W
8. Peak current: 78A
9. Max torque 3.7NM
10. weight 680g
